CNC Glass Edge Grinding Machine


The CNC Glass Edge Grinding Machines are windly used in various fields of glass industry.For instance

  • Appliance glass : including display glass,TV glass,cooking glass,kitchen glass ,fridge glass,etc
  • Household glass : Furniture glass,cabinet glass,etc
  • Switch panel glass: Smart glass switch panel ,Appliance glass,etc
  • Automotive glass :windshield glass,window glass,rear view glass etc

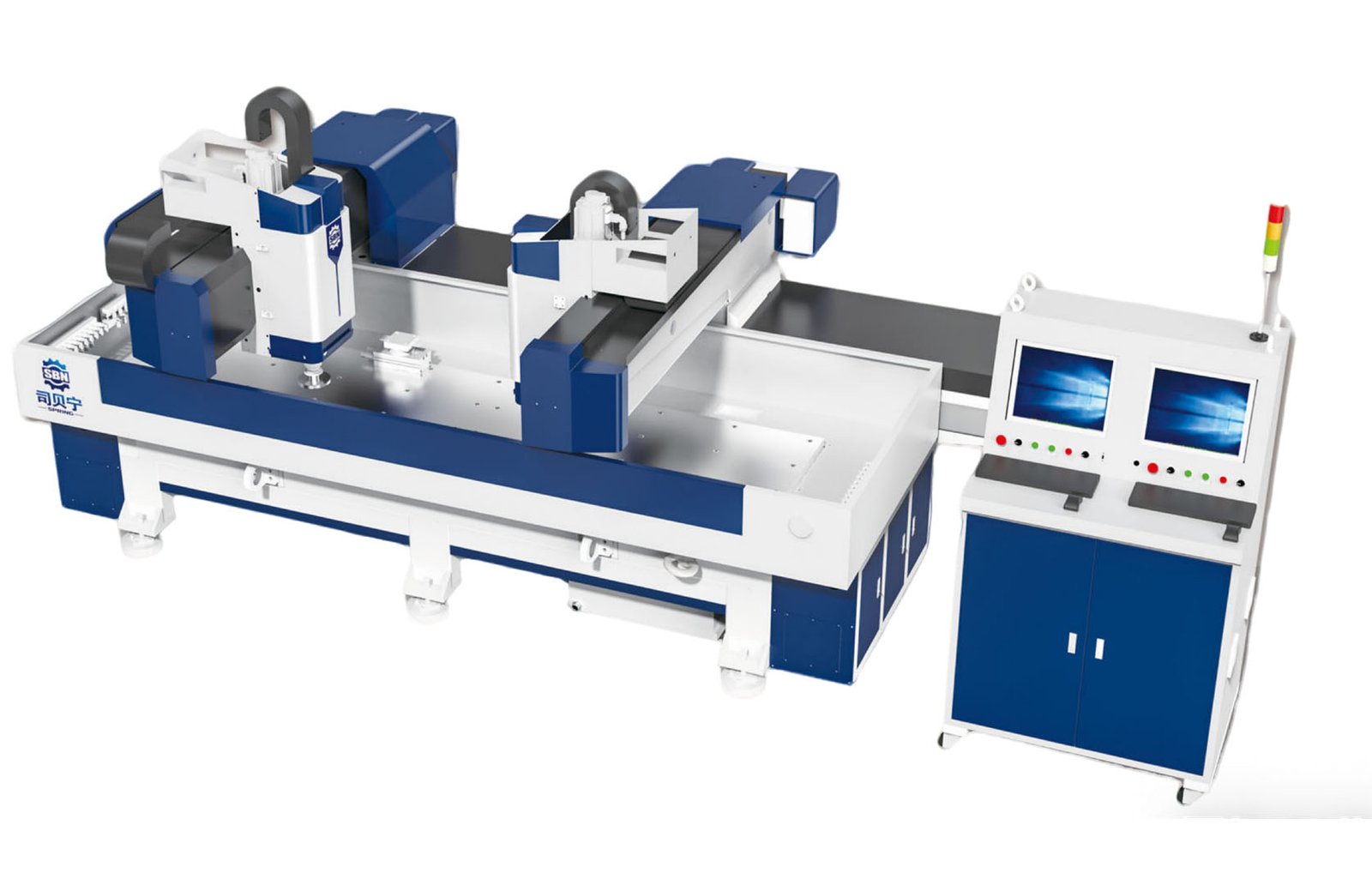

Double-heads CNC Glass Edge Grinding Machine

Milling,Edge Grinding and Polishing Perfect choice of CNC to process normal and special-shaped glass According to the suitable grindding and polishing wheels Double work effiency compare with the single head Glass edge grinding machine

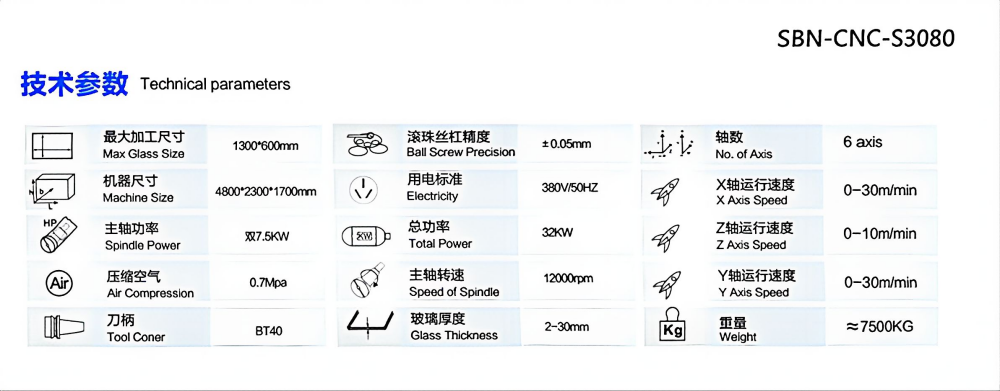

Parameters

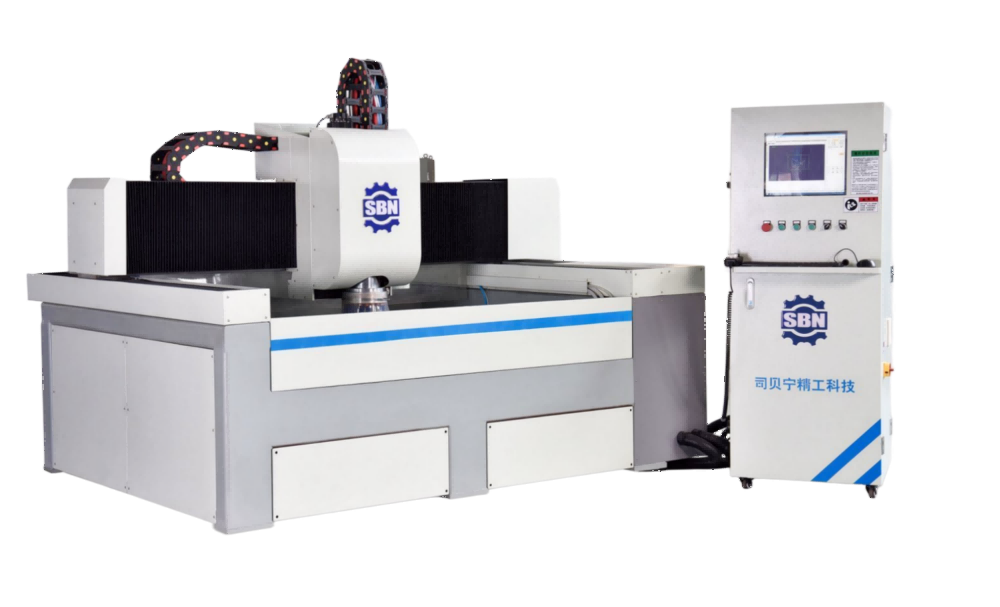

Classic design CNC Glass Edge Grinding Machine

The CNC uses advanced CAD system to achieve dynamic management of each axis,which precisely controls its speed to meet the high demand of complicated design and quality.And it's with advanced technology well compatible with CAD,which is easily used by customers.

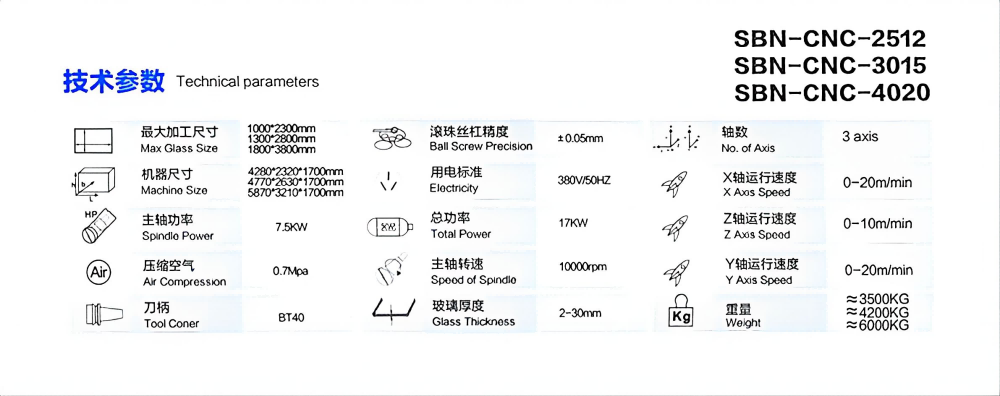

Parameters for a variety of sizes machines

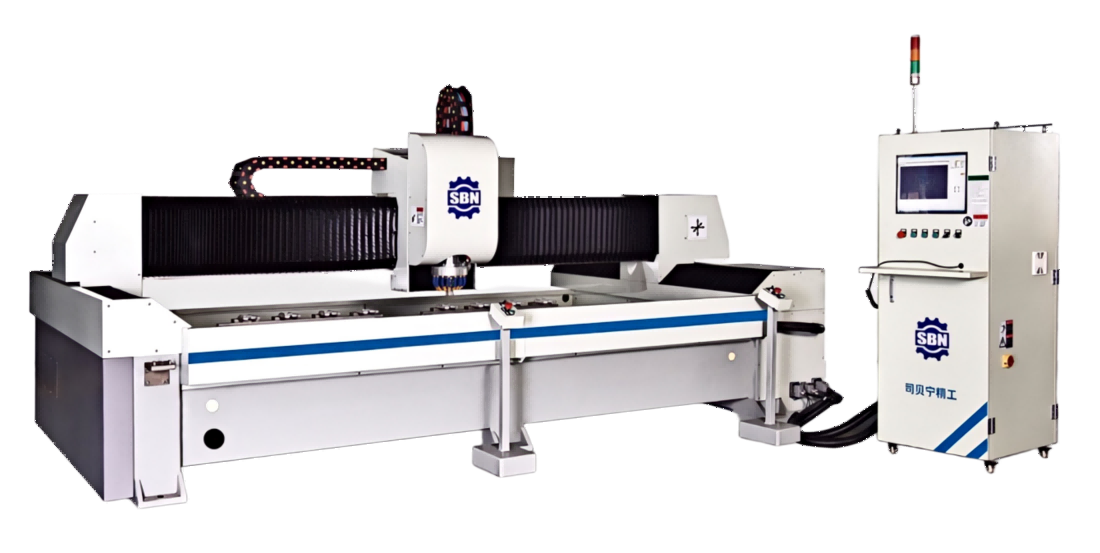

Simple Design CNC Glass Edge Grinding Machine

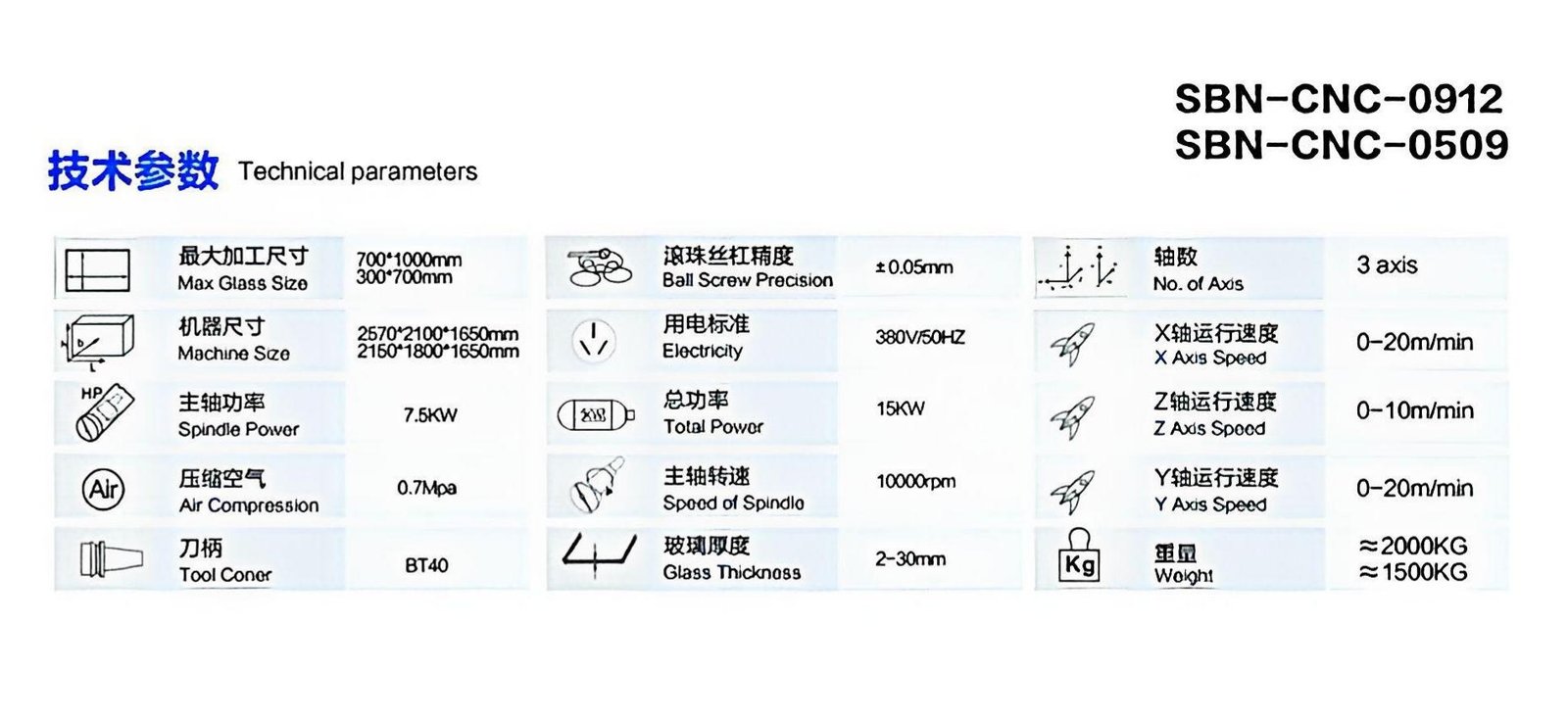

Parameters for different sizes machines 7.jpg

The effect after grinding and components
